Arc Flash Monitoring
Arc Flash Monitoring
Arc fault protection for the fast clearance of arcing faults on BUS bars & within metal clad switchgear & associated cable boxes. The arc is detected using an optical sensor & the signal input to a protection device which alsomonitors the load current on the system.
A trip signal can be achieved in less than 10msusing arc detection only or within 15ms when using overcurrent check. This is considerably faster than a traditional IDMT overcurrent relay & provides additional protection from the onset of arcing faults with relatively low fault currents.
Products:
.png)

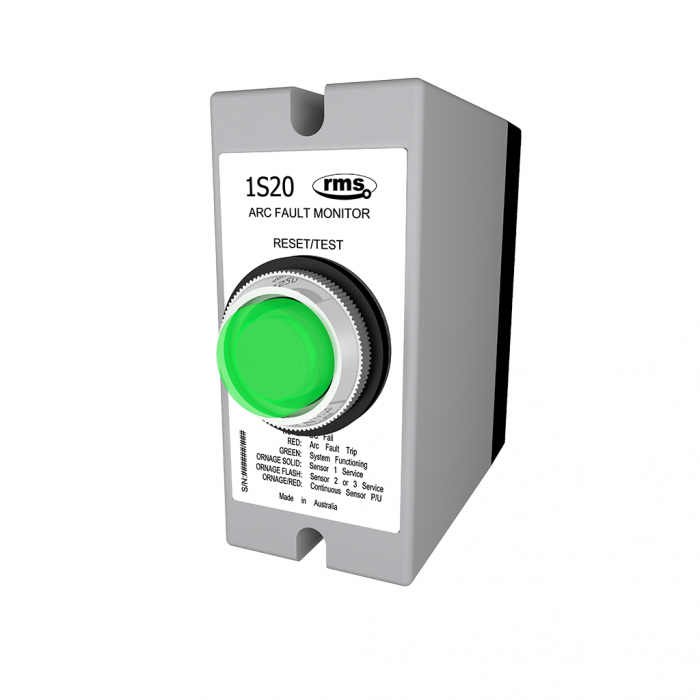

1S20 Arc Flash Monitor – 3 point sensors / 2 zones
- Compact, economic design
- Simple panel mounting for retrofit applications
- Two or three arc sensor inputs
- Two high speed tripping duty arc sense output contacts
- Push button reset
- Continuous arc sensor supervision
- Integrated self supervision
- Fail alarm contact
See more details
.png)

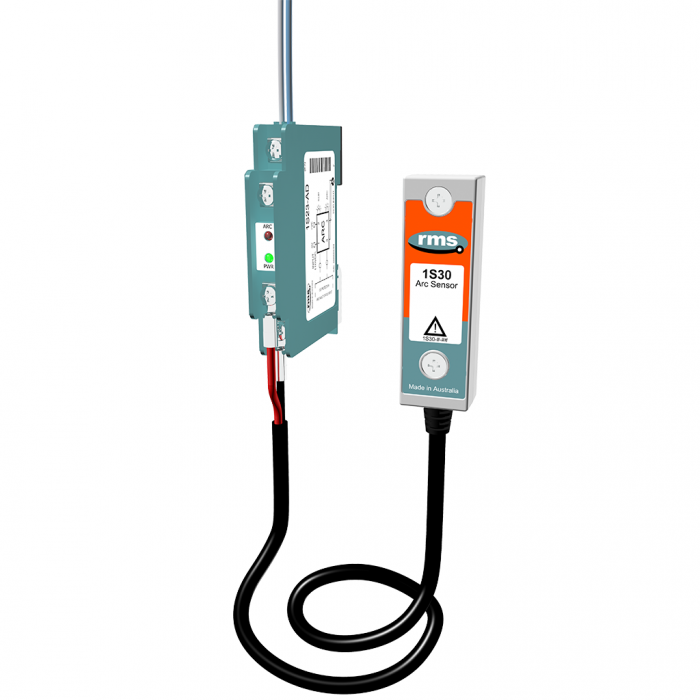

1S23 Arc Flash Module – 2 point sensors / 1 zone
- Compact, simple, rugged and economic design
- Simple wiring and DIN rail mounting
- Interface for one or two 1S30 arc fault sensors
- High speed arc fault tripping output to interface with protection relay status inputs
- Apply to initiate IEC61850 GOOSE messaging of arc fault events
- Continuous arc fault sensor supervision
- Arc fault pick up and supervision healthy indication
- 24, 32, 48, 110, 125, 220, 240 and 250V DC auxiliary versions
See more details
.png)

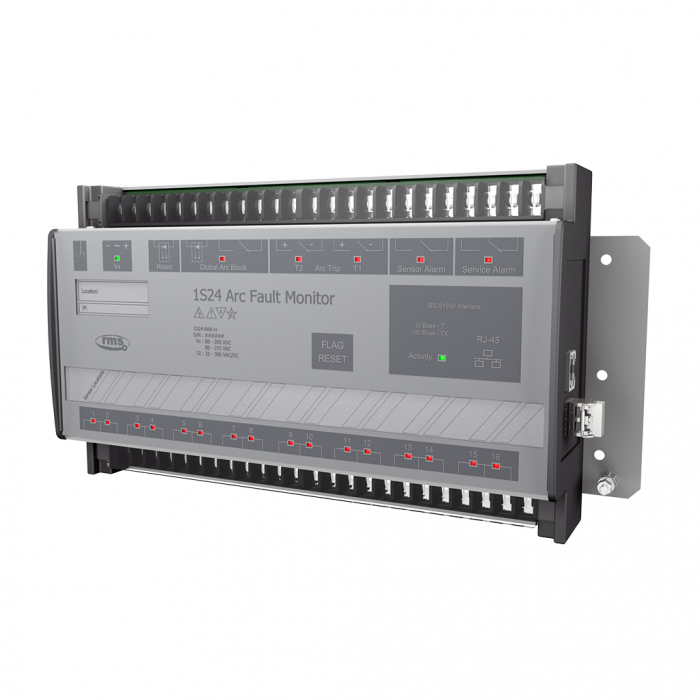

1S24 Arc Flash Monitor – 16 point or 12 point + …
- Up to 16 arc fault sensors
- Up to 16 independent arc fault SARC logic nodes
- Arc fault signaling via Ethernet IEC61850 GOOSE messaging
- 10Base-T / 100Base-TX port
- Optional 100Base-FX port
- Trip indication LED for each arc fault sensor
- Continuous arc sensor supervision with sensor fail LED for each zone
- Non volatile memory ensures last recorded alarm states are restored on power up
See more details
.png)

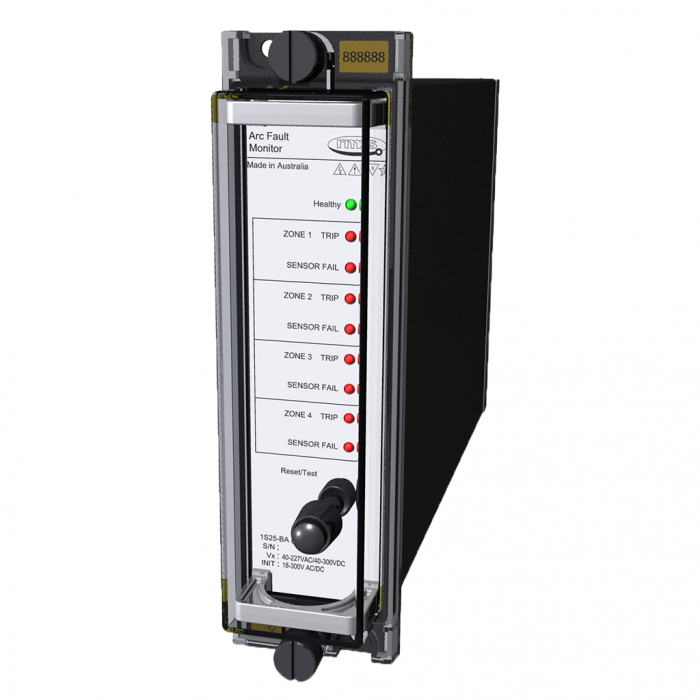

1S25 Arc Flash Monitor – 8 point sensors / 4 zones
- Four independent arc fault tripping zones
- 1 or 2 arc fault sensors per zone allowing up to 8 arc fault sensors per 1S25 module
- Trip indication LED for each arc fault monitoring zone
- Non volatile memory ensures last recorded alarm states are restored on power up
- Nine high speed arc fault tripping duty output contacts (Set for latching or self reset)
- Zone segregated or common tripping output configuration
- Continuous arc sensor supervision with sensor fail LED for each zone
- Wide range status input to block arc fault monitoring
- Front panel reset button & status input
- Self supervision watchdog with healthy LED & alarm contact
- Built in test sequence
- Wide range auxiliary supply
- Made in Australia
See more details
.png)
1S26 Arc Flash Monitor – 8 point sensors / 4 zon…
- Four independent arc fault tripping zones
- 1 or 2 arc fault sensors per zone allowing up to 8 arc fault sensors per 1S26 module
- Blocking status input for each arc fault zone
- Trip indication LED for each arc fault zone
- Continuous arc sensor supervision with sensor fail LED for each zone
- Non volatile memory ensures last recorded alarm states are restored on power up
- Integrated 3 phase overcurrent check function
- 20-200% current setting range
- Optional 5-50% E/F input
- 1A or 5A nominal CT inputs
- Integrated CB check function
- 3 phase current check block status input
- Thirteen (13) high speed configurable tripping duty output contacts
- Zone segregated or common tripping output configuration
- Reset LED flags via front panel button or status input
- Self supervision watchdog with healthy LED & alarm contact
- Made in Australia
See more details
.png)

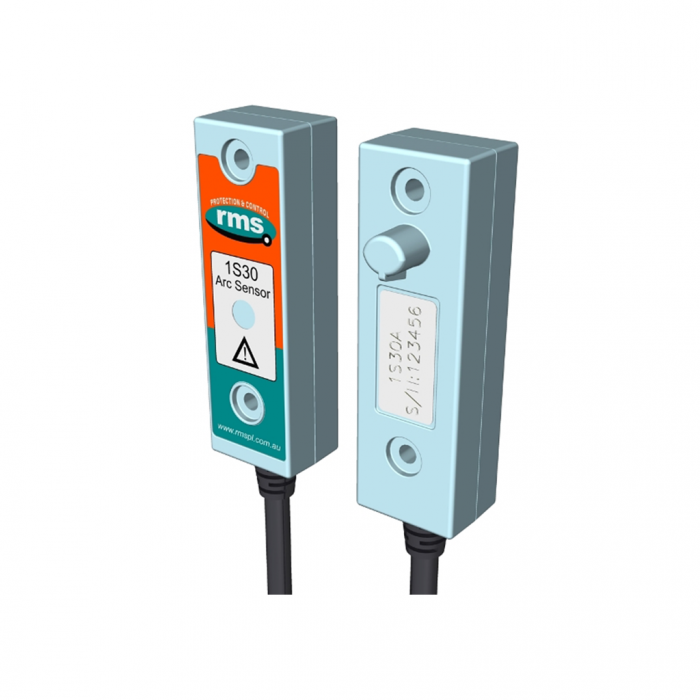

1S30 Optical Arc Fault Point Sensor
- Compact rugged design
- One or two optical detectors
- High speed arc detection
- Heavy duty 6m termination cable
- Optional 20m & screened cables
- Simple flush panel mounting outside or inside switchgear compartment
- Integrated sensor circuit supervision
- Very low sensitivity to ambient light levels to avoid nuisance tripping even in direct sunlight
- Sealed module for harsh environments
- Optional metal reinforced mounting shield
See more details
.png)

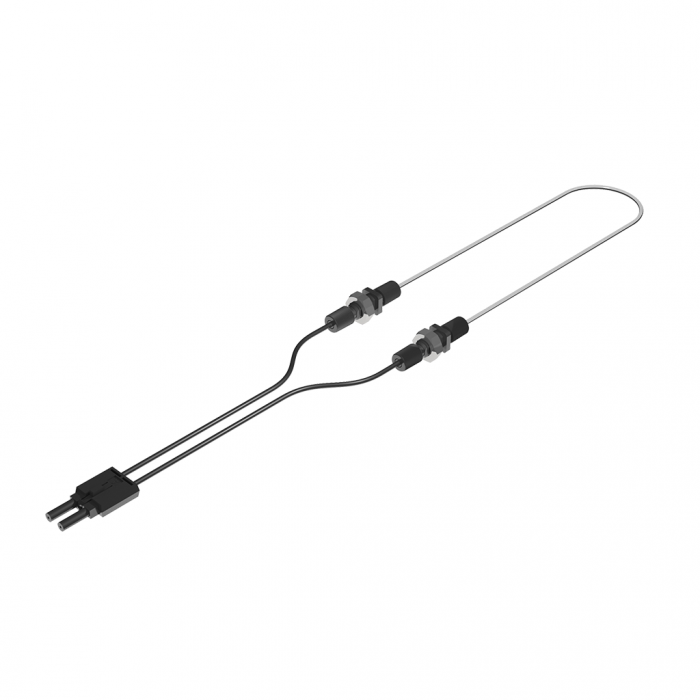

1S40 Optical Arc Fault Linear Sensor
- Linear sensor for wide of arc protection coverage
- Optional sensor fibre length
- Optional link fibre length
- Loop topology allows sensor supervision
- Robust and durable 2mm plastic optical fibre
- Suits RMS 1S24 and 1S27 arc fault monitors
- Sensor length up to 35 meters
- Sensor link adds another 40 meters in length
- Robust and durable 2mm plastic optical fibre
- No special tools required for installation
- Supplied with 2x fibre couplers
- Supplied with fibre cutter
See more details
.jpg)

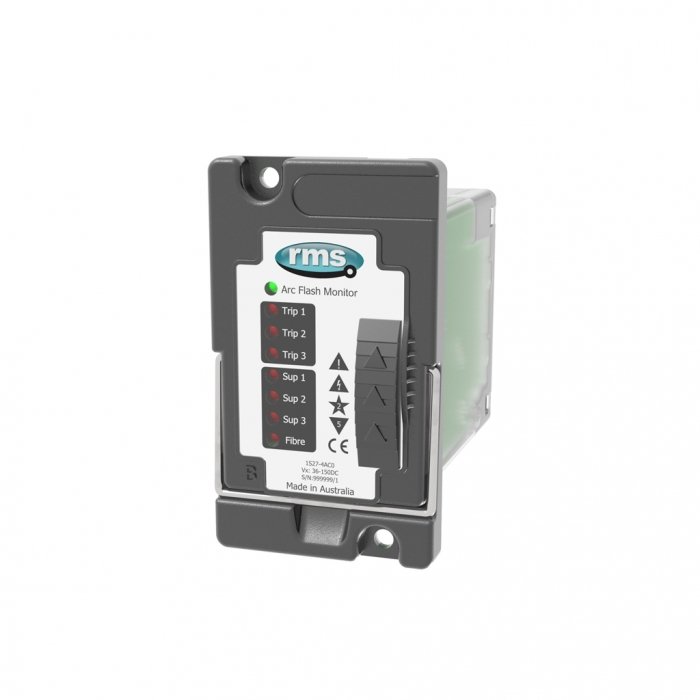

Delta 1S27 Arc Flash Monitor – 4 point + 1 linea…
- Less than 7ms arc detection and tripping time
- Four (4) point sensor inputs
- Optional linear sensor input
- Surface or rail mount
- Flush panel or rack mount
- Made in Australia
See more details
