XM-series modular electronic monitoring relays

  • Voltage montoring models (1-phase or 3-phase)
  • 3-phase network monitoring models (phase failure, sequence and asymmetry)
  • Current monitoring models (AC, DC)
  • Suited for 35mm rail (DIN) mounting

For general purpose, industrial applications, switching of AC or low DC voltages / resistive loads.


Filter
Measuring & monitoring relays (Obsolete)

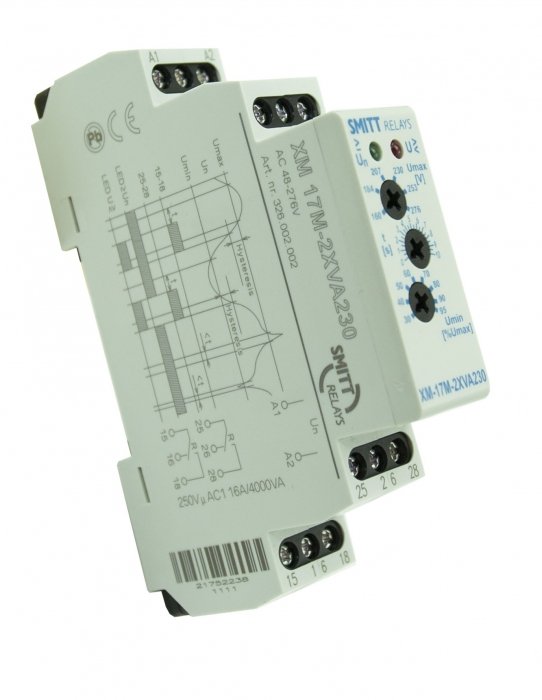

XM-17M-2XVA230, voltage monitoring relay

326002002
  • - Monitoring & supply range: 48...276 VAC
  • - 2 independent changeover contacts 16A (AC1)
  • - Umax and Umin independend levels
  • - Time delay 0-10 sec
Measuring & monitoring relays (Obsolete)

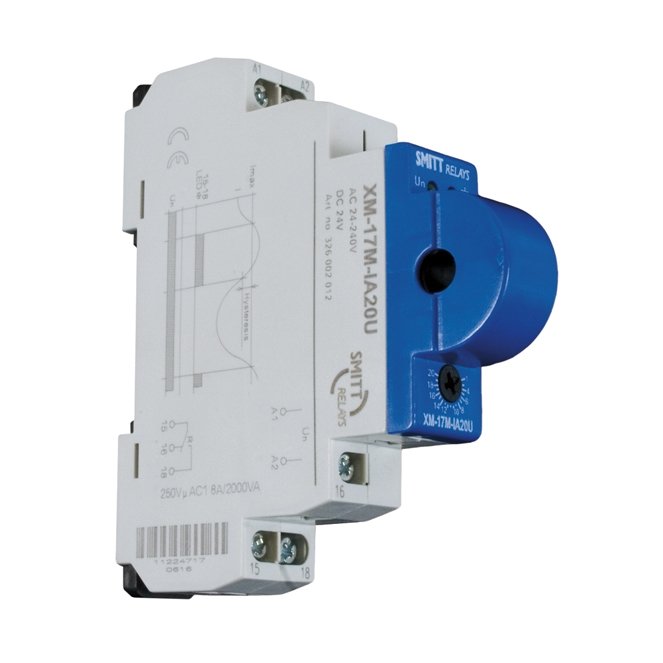

XM-17M-IA20U, 1 phase AC current monitoring relay

326002012
  • - Monitoring range: 1...20 AAC
  • - 1 changeover contact 8 A (AC1)
  • - Time delay: 0,5...5 s
  • - Supply voltage 24-240VAC/24VDC
Measuring & monitoring relays (Obsolete)

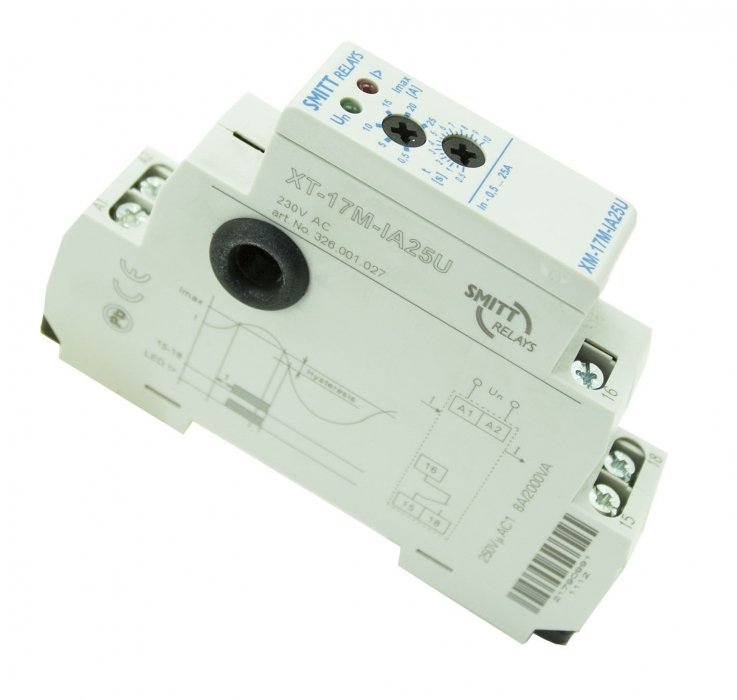

XM-17M-IA25U, Currentprotection, 1 phase

326001027
  • AC current monitoring relay 25 A
  • Measuring range up to 600 A (with
  • current transformer)
  • Current adjustment by potentiometer
  • Supply galvanic separated from
  • measuring current
  • 1 C/O contact 8 A / AC 1
  • 35 mm rail mounting
  • Output status by LED indicator
  • Supply voltage 230 VAC 50/60 Hz
  • Modular housing, 1 module
  • Optional: external transformer
Measuring & monitoring relays (Obsolete)


XM-17M-M400L, 3 phase, monitoring relay

326002003
  • 3 phase network monitoring relay; voltage level, phase faillure & sequence
  • 1 changeover contact 8A (AC1), LED indicator
  • Nominal voltage 3x400VAC (no neutral)
Measuring & monitoring relays (Obsolete)

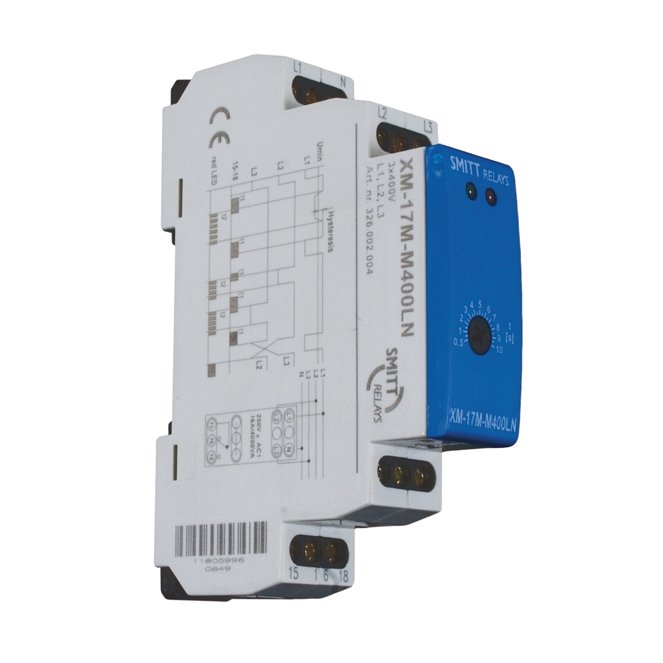

XM-17M-M400LN, 3 phase + N, AC monitoring relay

326002004
  • 3 phase network monitoring relay for phase faillure & sequence
  • 1 changeover contact 8A (AC1), LED indicator
  • Nominal voltage 3x230/400VAC (+ neutral)
Measuring & monitoring relays (Obsolete)

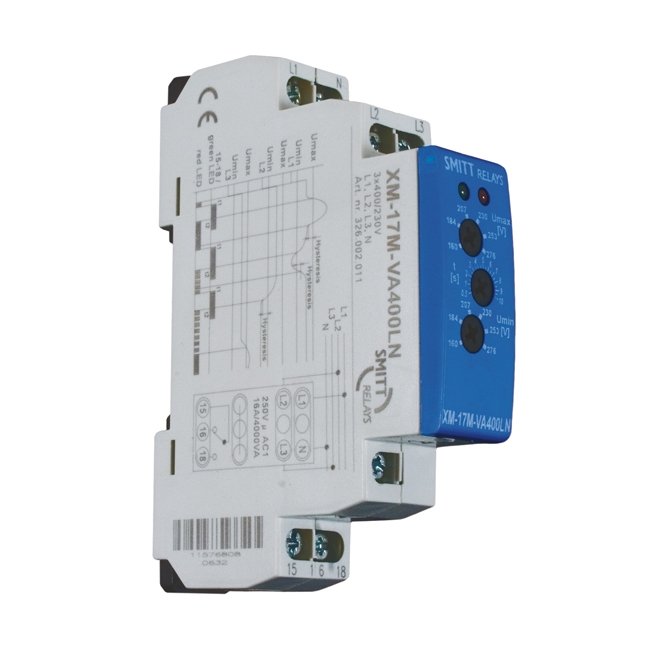

XM-17M-VA400LN, 3 phase, AC voltage monitoring rel…

326002011
  • - 3 phase network monitoring relay for phase failure and phase sequence.
  • - 1 changeover contact 8A (AC1), LED indicator
  • - Nominal voltage 3 x 400 / 1 x 230VAC
Measuring & monitoring relays (Obsolete)

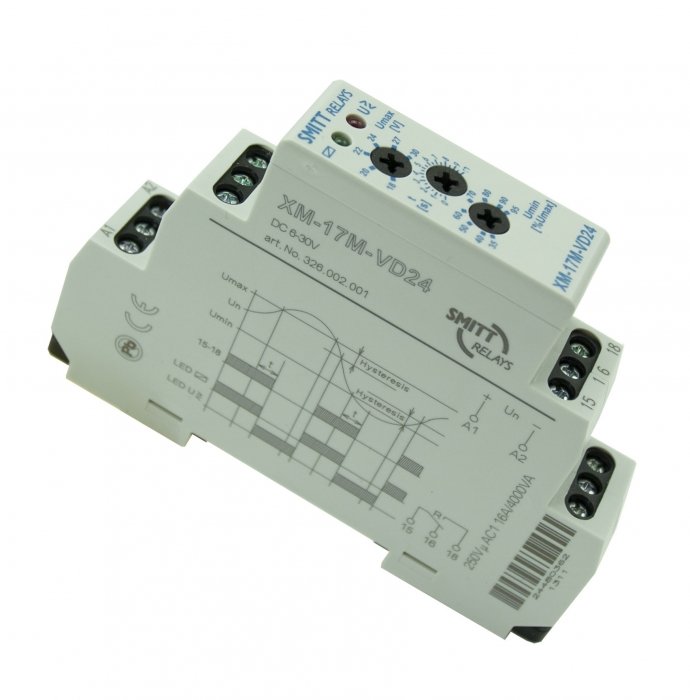

XM-17M-VD24, 1 phase DC voltage monitoring relay

326002001
  • - Monitoring & supply range: 6...30VDC
  • - 1 changeover contact 16A (AC1)
  • - Umax and Umin can be monitored independently
  • - Time delay 0-10 sec
Measuring & monitoring relays (Obsolete)


XM-52M-IAD16, AC/DC current monitoring relay

326002010
  • - Current monitoring range: 0,4...20A AC/DC (3 ranges)
  • - 2 changeover contact 16A (AC1)
  • - LED indicator
  • - Supply voltage 230VAC (50Hz)
Measuring & monitoring relays (Obsolete)

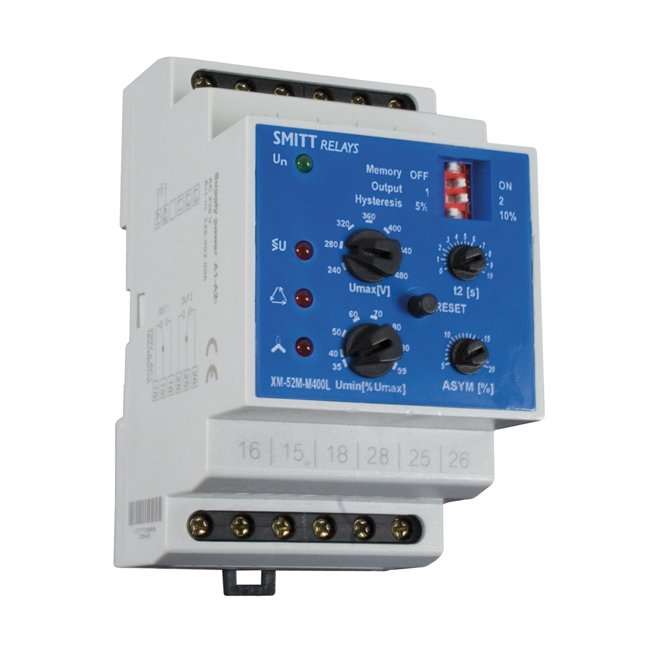

XM-52M-M400L, 3 phase, monitoring relay

326002006
  • - 3 phase network monitoring relay, voltage level, sequence, failure & assymetry
  • - Memory, adjustable hysteresis and delay
  • - 2 changeover contacts 16A (AC1), LED indicator
Measuring & monitoring relays (Obsolete)

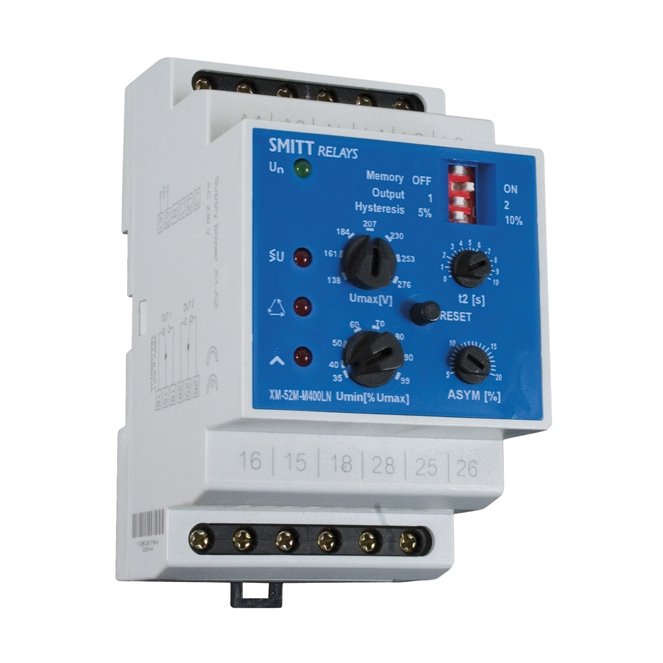

XM-52M-M400LN, 3 phase+N, monitoring relay

326002007
  • - 3 phase+N network monitoring relay, voltage level, sequence, failure & assymetry
  • - Memory, adjustable hysteresis and delay
  • - 2 changeover contacts 16A (AC1) , LED indicator
Measuring & monitoring relays (Obsolete)

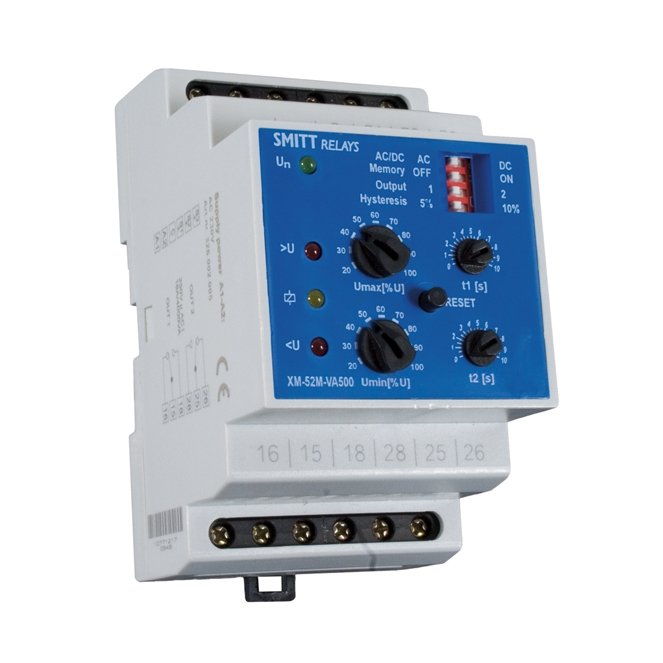

XM-52M-VA500, 1 phase voltage monitoring relay

326002005
  • - Supply and measuring range: 10...500 VAC
  • - Window function, fault state memory, hysteresis
  • - Galvanic seperated supply 230, 400VAC/24V AC/DC
  • - 2 changeover contacts 16A (AC1), LED indicator
