XT-series modular electronic timer relays

Modular electronic timer relays with single, dual and multifunction models. For general purpose, industrial applications, switching of AC or low DC voltages / resistive loads.

  • Single & dual function models.
  • Multi-function models (up to 10 functions).
  • Suitable for 35mm rail (DIN) mounting.


Products:


Filter
Timer relays (Obsolete)

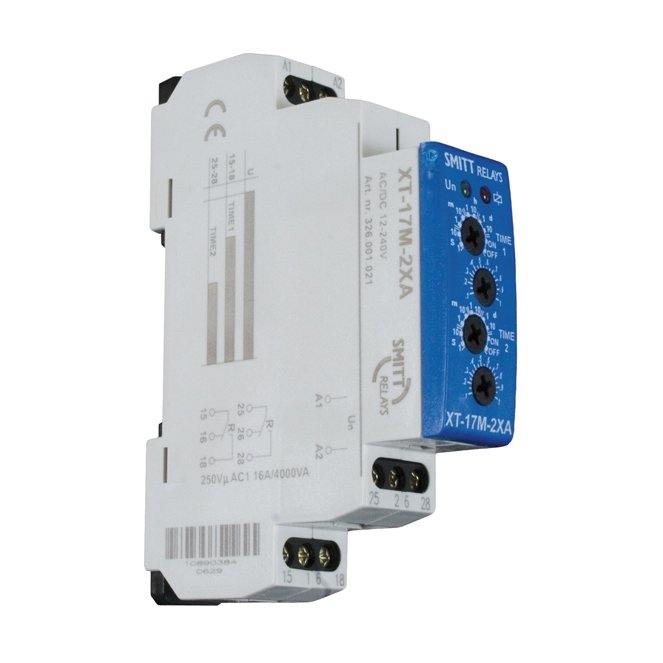

XT-17M-2XA, delay on (2 timed contacts)

326001021
  • Adjustable time delay 0.1 s...10 d
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

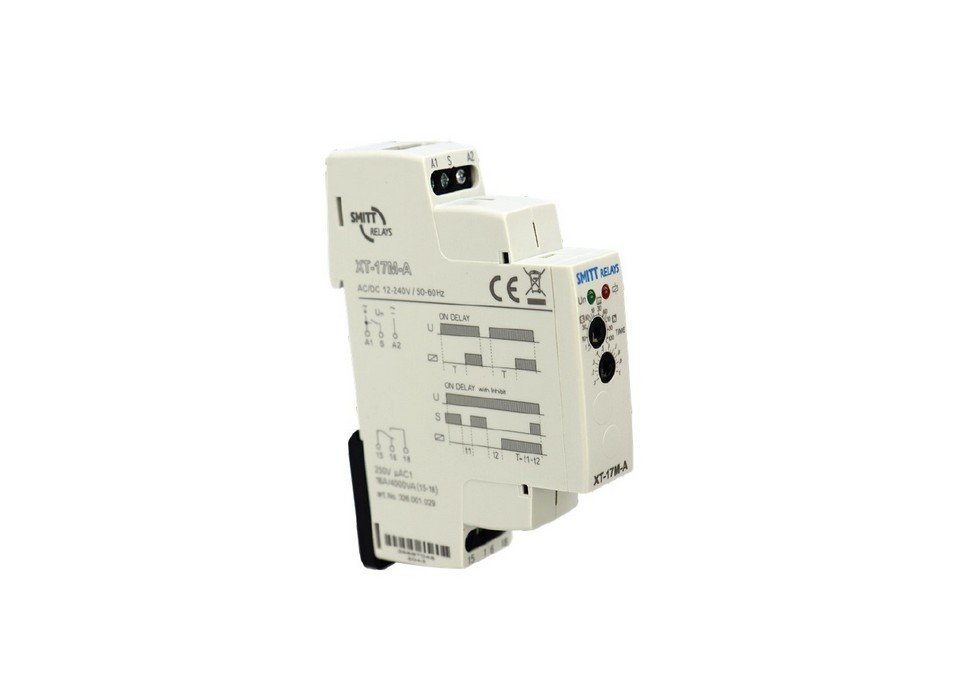

XT-17M-A delay on

326001029
  • Adjustable time delay 0.1 s...100 h
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

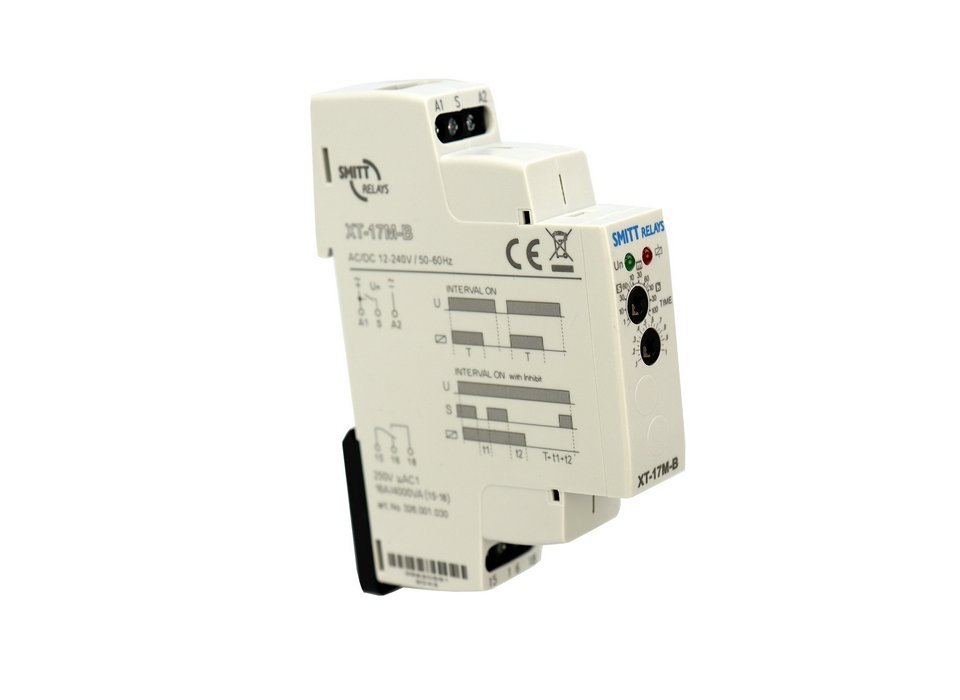

XT-17M-B relay, delay off

326001030
  • Adjustable time delay 0.1 s...100 h
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

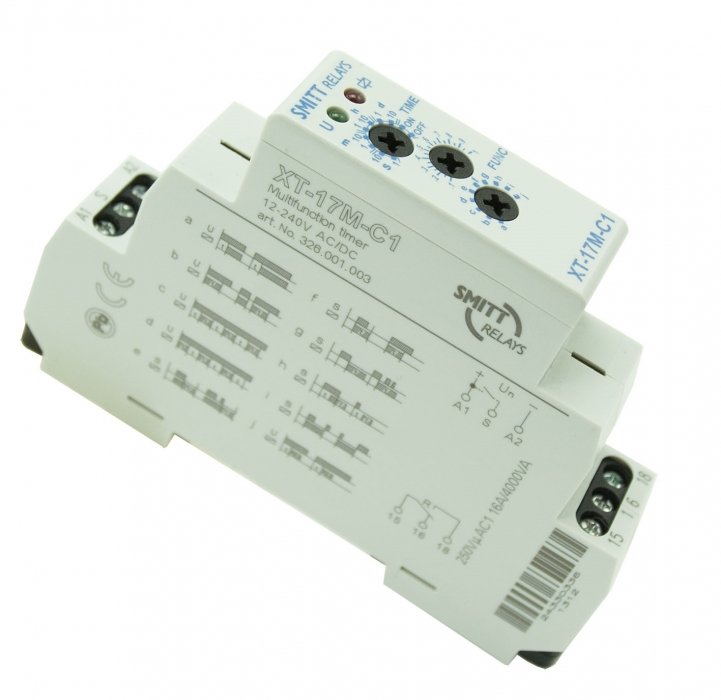

XT-17M-C1, multifunction

326001003
  • 10 functions
  • Adjustable time delay 0.1 s...10 d
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

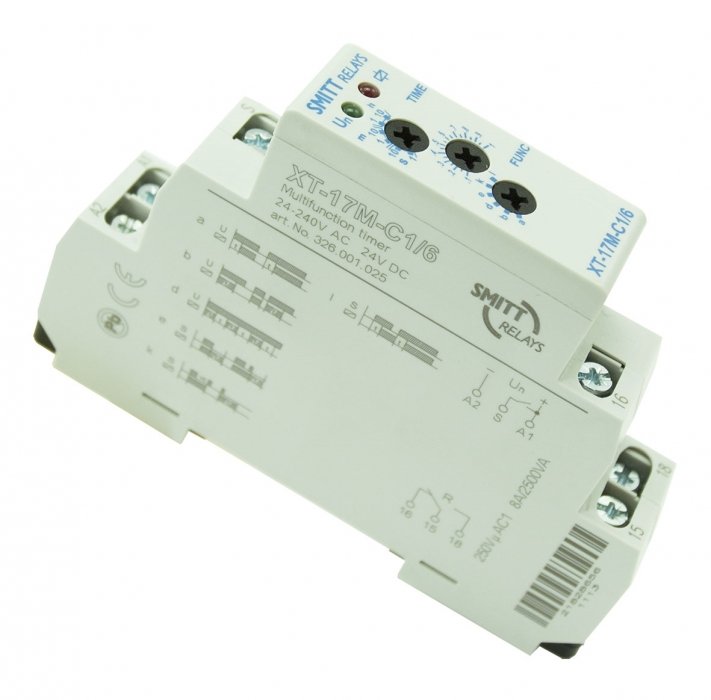

XT-17M-C1/6, multifunction

326001025
  • 6 functions
  • Adjustable time delay 0.1 s...10 h
  • Universal supply voltage 24...240 VAC / 24 VDC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

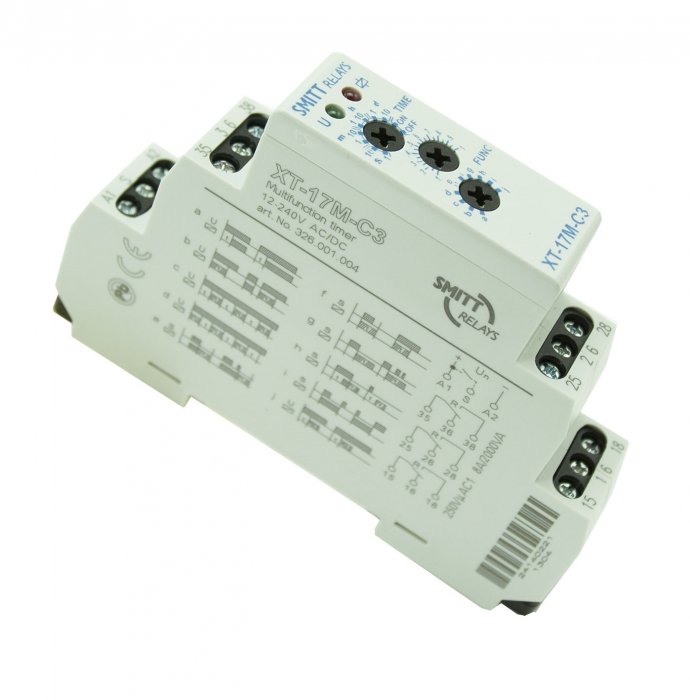

XT-17M-C3, multifunction

326001004
  • 10 functions
  • Adjustable time delay 0.1 s...10 d
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

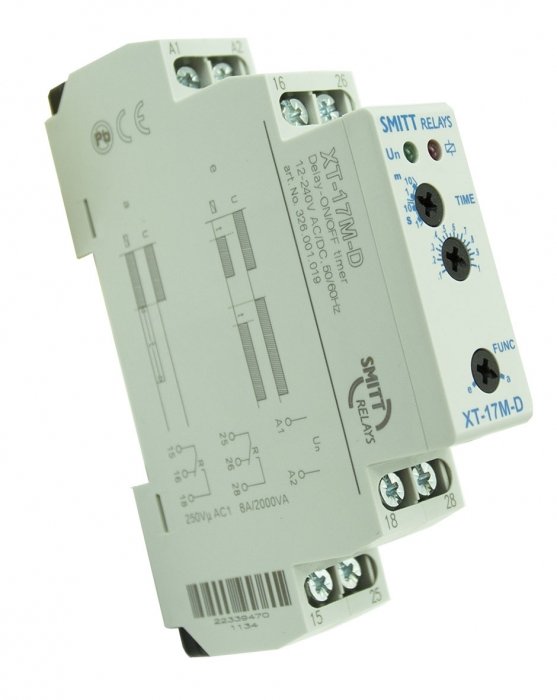

XT-17M-D, delay on / delay off (without auxiliary …

326001001
  • Adjustable time delay 0.1 s...10 min
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

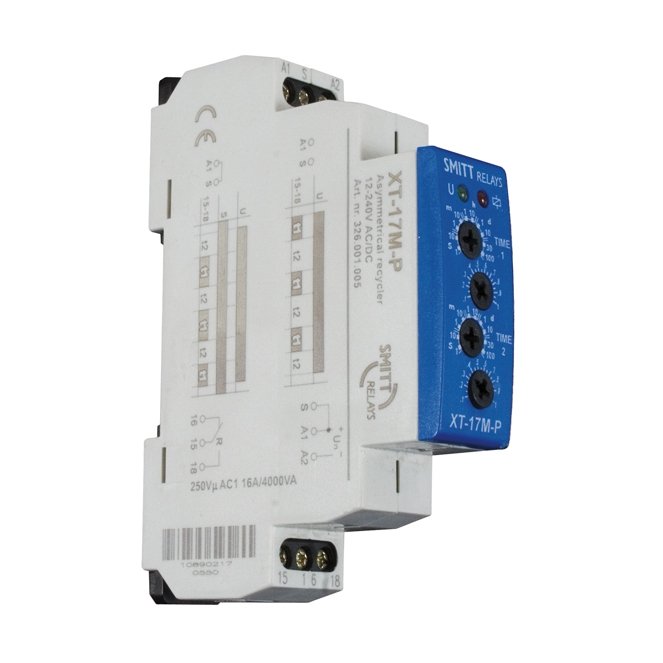

XT-17M-P, asymmetric cycler

326001005
  • Cycler starting with impulse or with pause
  • Adjustable time delay 0.1 s...100 d
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

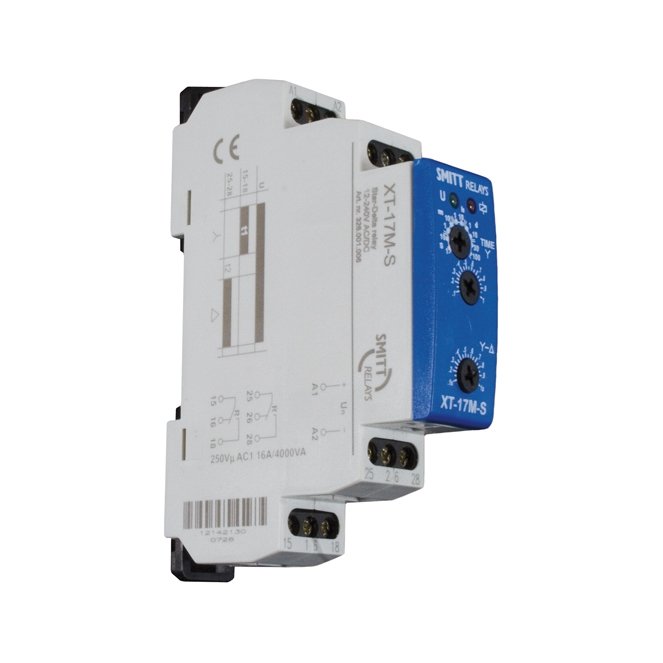

XT-17M-S Delay-on Star / Delta

326001006
  • Adjustable time delay T1 0.1 s...100 d
  • Adjustable time delay T2 0.1...1 s (star / Δ)
  • Universal supply voltage 12...240 VAC/DC
  • LED indication
  • Suitable for 35 mm rail mounting
Timer relays (Obsolete)

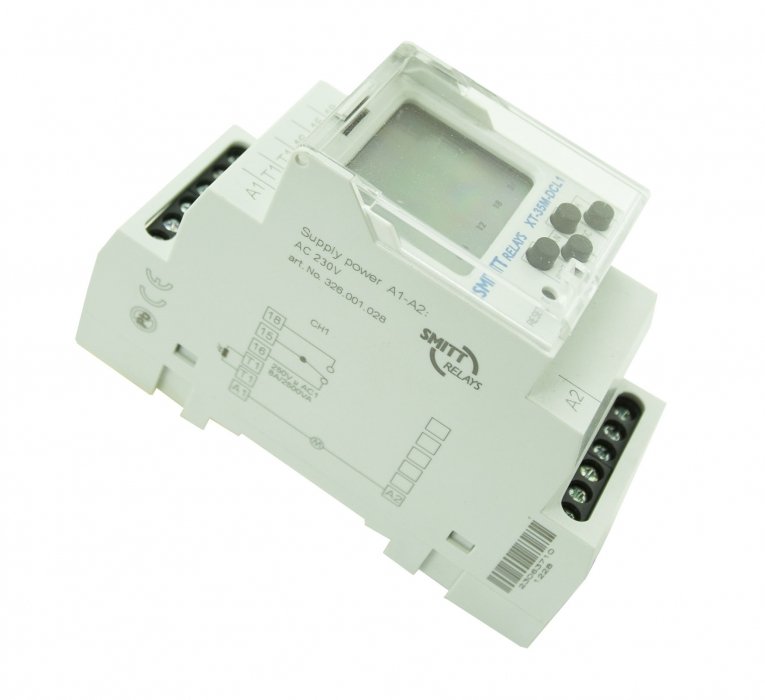

XT-35M-DCL1, Digital, programmable, with twilight …

OBSOLETE
  • Adjustable light intensity 1...5000 lux
  • External wall / panel mounting sensor
  • Supply voltage 230 VAC
  • 100 memory places
  • Suitable for 35 mm rail mounting
