Latching / bistable heavy duty power relays
Latching / bistable heavy duty power relays
A latching relay / bistable relay is designed to be voltage pulse activated.
The voltage pulse will activate the relay to pull-in or release the contacts. The latching relay / bistable relay will hold its contactposition till the next voltage pulse. Below latching relays / bistable relays are designed for demanding heavy duty applications.
.jpg)

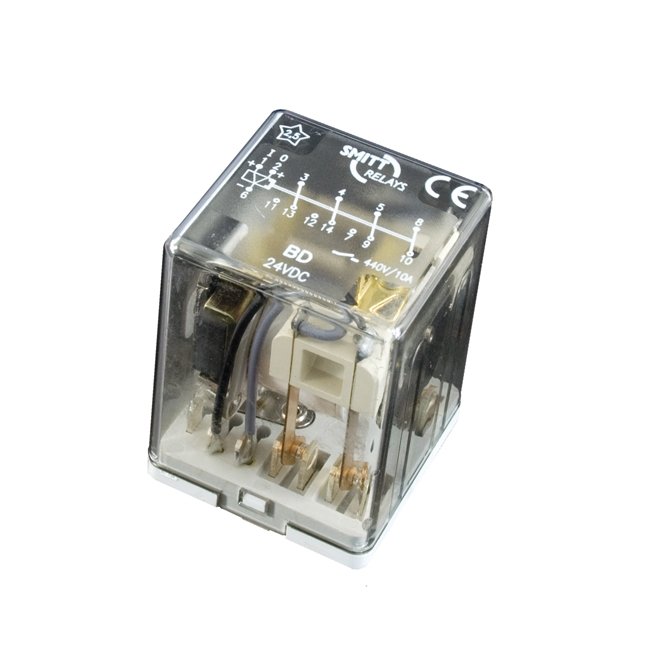

BD series, latching relay (bistable), magnetic lat…
- Plug-in relay with 3 C/O + 1N/C contacts
- Coil voltages 12...230 VDC, 24...240 VAC
- Rated load 1A /110V DC1, 10A/230V AC1
- Latching/bistable by means of a permanent magnet
- Continuous coil energization permitted
See more details
.jpg)
BD-B series, latching relay (bistable), magnetic l…
- Magnetic arc blowout (option B, standard)
- Plug-in relay with 3 C/O + 1N/C contacts
- Coil voltages 12...230 VDC, 24...240 VAC
- Rated load 1A /110V DC1, 10A/230V AC1
- Latching/bistable by means of a permanent magnet
- Continuous coil energization permitted
See more details
.jpg)

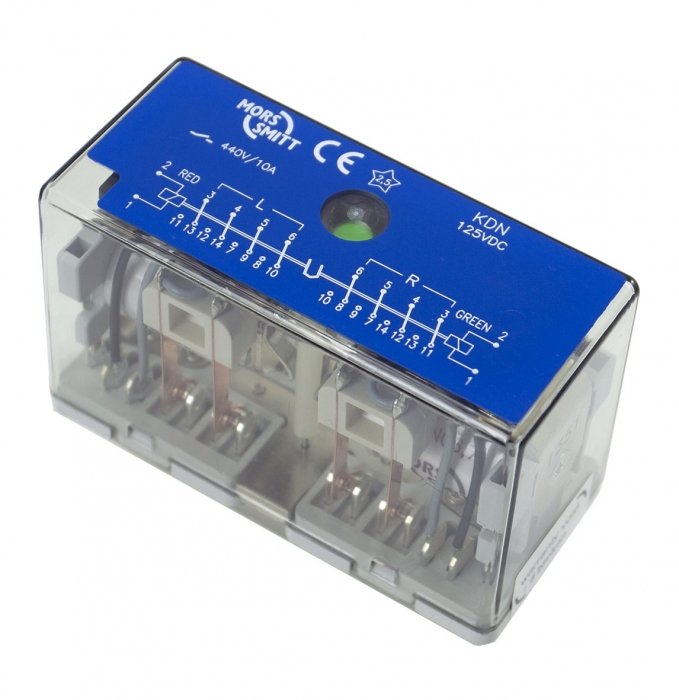

KDN series, latching relay (bistable), mechanical …
- Plug-in relay with 8 C/O contacts
- Coil voltages 12...250 VDC, 24...240 VAC
- Rated load 1A /110V DC1, 10A/230V AC1
- Latching/bistable by means of a mechanical latch
- Continuous coil energization permitted
See more details
KDN-R8, Industrial latching fast trip relay, 8 pol…
- Latching (bistable) relay
- Magnetic arc blow-out for high breaking capacity
- Back EMF suppression diode on trip and reset inputs
- 8 C/O contacts
- Fast Tripping <10ms
- Wide range sockets
- High DC breaking capacity
- Less than 0.2W power consumption after trip
See more details
