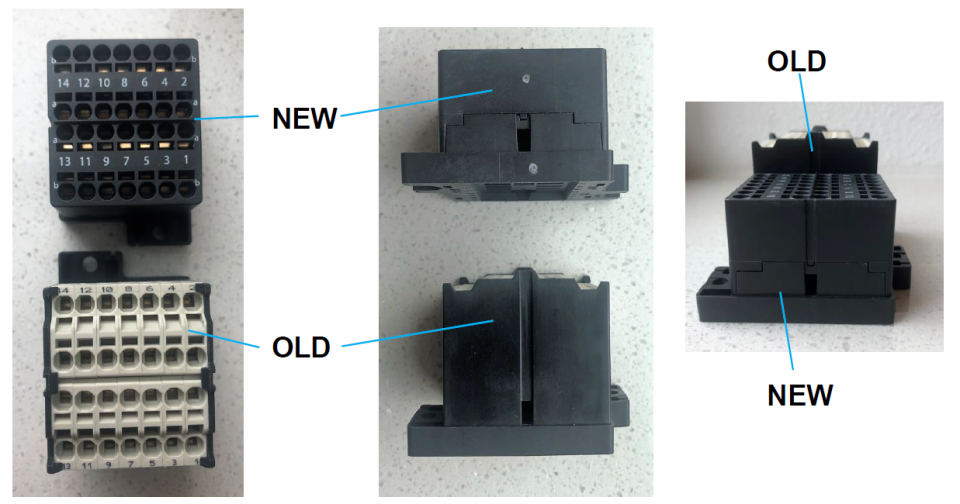

Advantages new V33/V88 compared to old V33/V88:


  1. Smaller: depth reduced with 11.8 mm.
  2. Push-in terminals instead of tension spring terminals:
    No tool needed to insert wire for solid wires and stranded wires with ferrules.
    Same method as old V33/V88 also possible: use tool to open terminal.
  3. Larger wires possible: from 2.5 mm2 (AWG 14) to 3.3 mm2 (AWG 12).
  4. Improved readability terminal marking.

From old V33 to new V33

Old
Part number: 338000570
New
Part number: 338000670

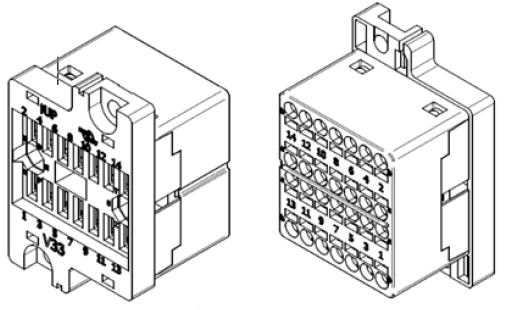

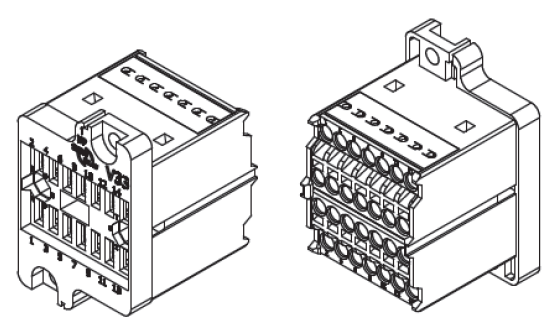

v33-old-1.png v33-new-1.png

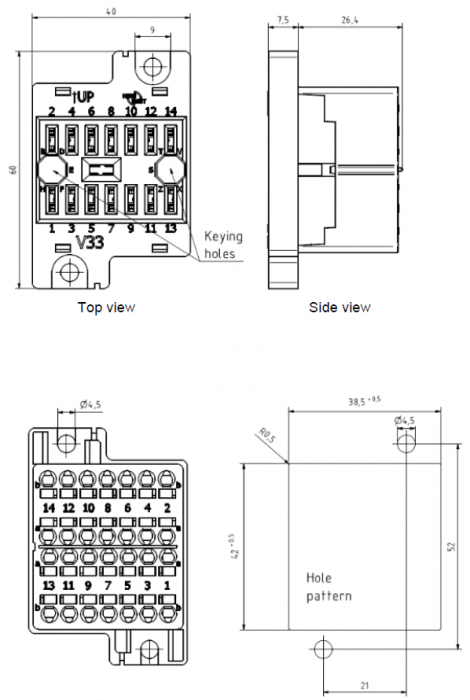

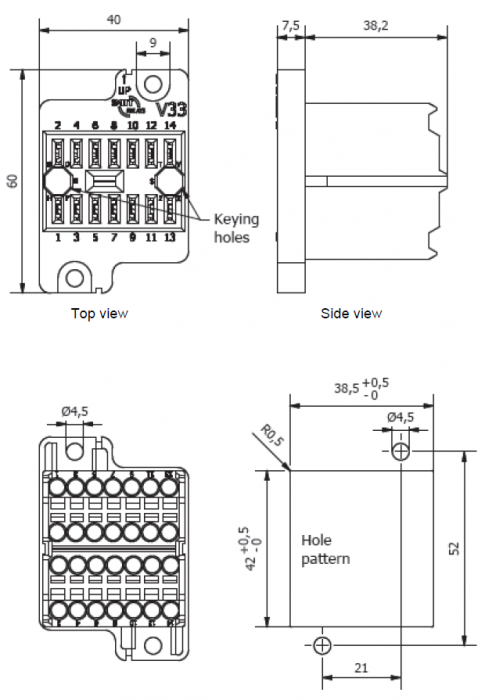

v33-old-2(1).png v33-new-2(1).png
Bottom view Bottom view
Dimensions in mm, tolerance ± 0,5 mm

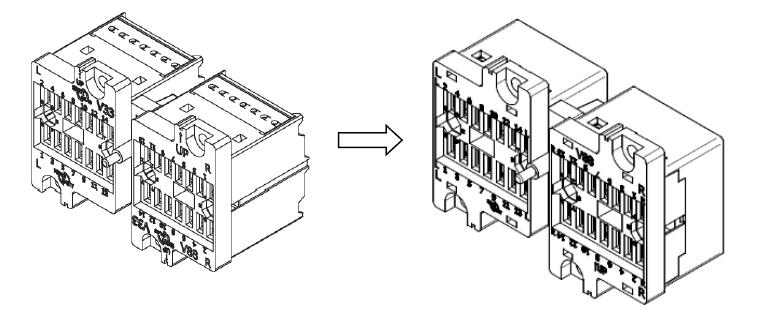

From old V88 to new V88



Old
Part number: 338001700
New
Part number: 338001710

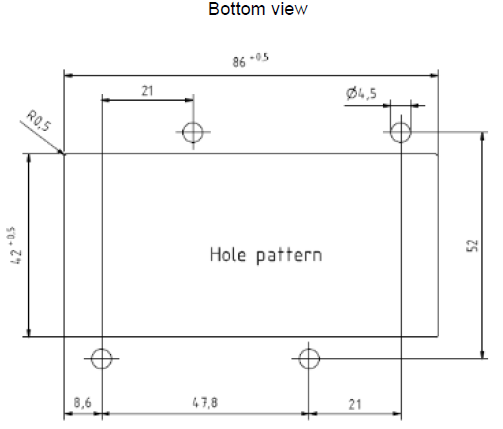

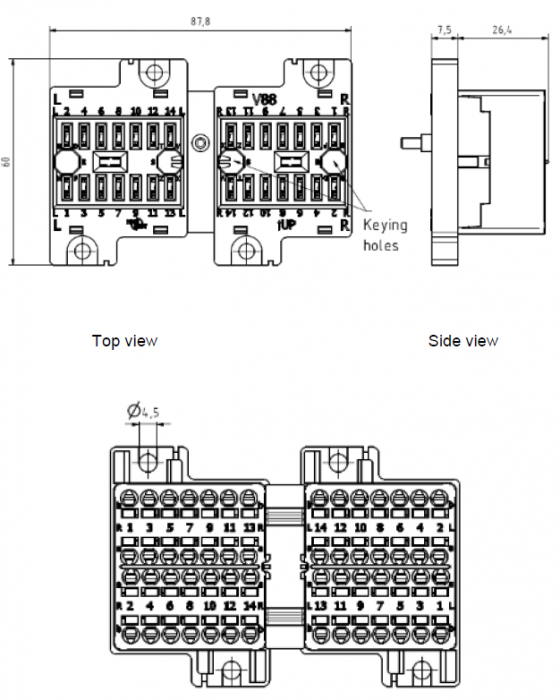

old-v88-drawing.png new-v88-drawing.png

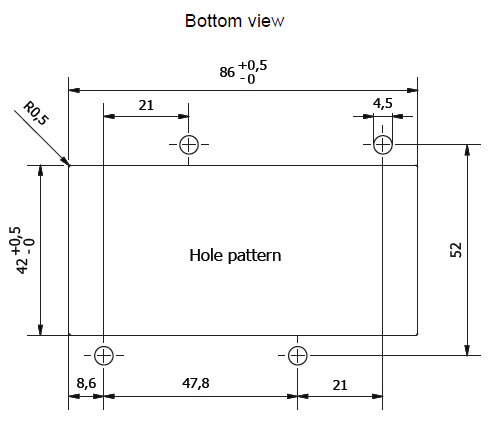

old-v88-drawing-2.png new-v88-drawing-2.png
Dimensions in mm, tolerance ± 0,5 mm
