338000670

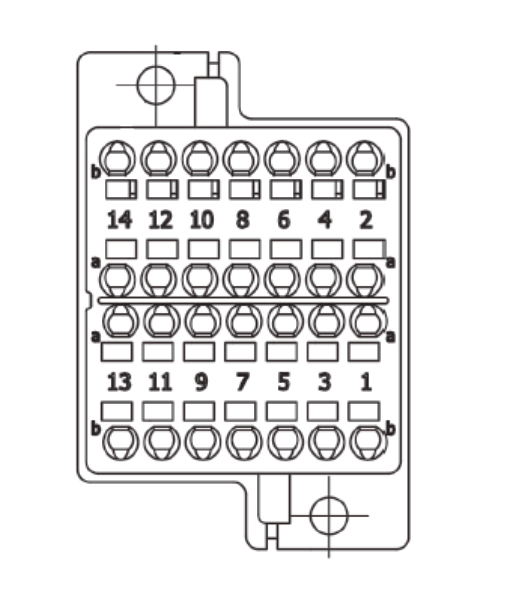

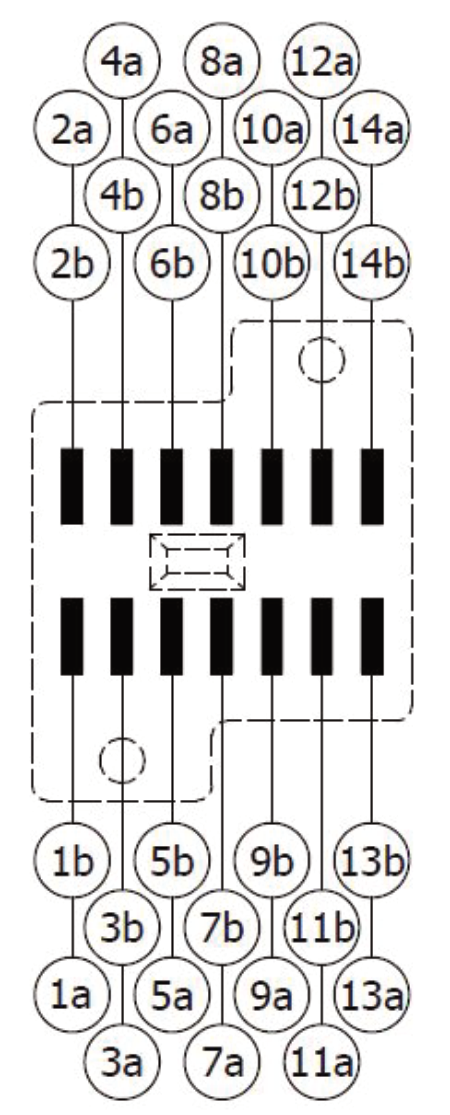

The V33 is a panel/flush mount D-Relay Socket with a base featuring two highly reliable push-in terminals per relay contact, allowing looping/daisy chaining on the socket without an external connector or terminal. Solid and stranded wires with ferrules up to 3.3 mm² can be inserted without a tool or lever. This quick and easy wiring method saves up to 75% wiring time, and the socket pinning complies with the relay pinning. To prevent fault relay placement, the socket can be equipped with mechanical keying to accept only designated identical keyed relays.
