6RM QUAD

Allgemeine Informationen

SKU

6RM QUAD

Kurzbeschreibung

Four Element Flag Relays

Ausführliche Beschreibung

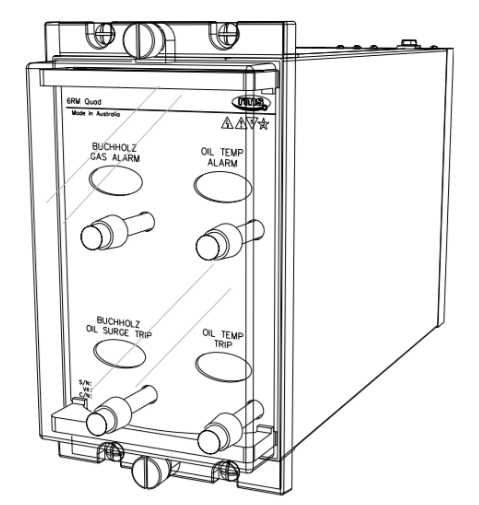

The 6RM QUAD range is a sub set of the popular 6R MATRIX system. While offering all of the benefits associated with the 6R MATRIX, the 6R QUAD comprises four flag elements in a single case providing the following benefits: ► Lower cost than single or dual relay packages ► Increased packing density to further reduce panel space requirements ► Custom flag labeling

Anzahl

Funktionen

Modular packaging
Rack or flush mounting
Range of function types
Draw out module

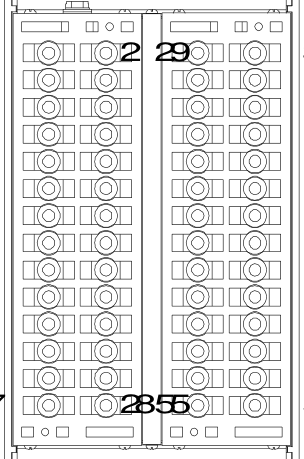

M4 screw terminals
Operating & reset coils are available for 24, 32, 48, 110, 125 or 250 Volts DC
Contacts are of fine silver designed & manufactured to ensure low resistance & high reliability
Optional gold plated contacts suitable for low currents

Anwendung

The 6RM QUAD Auxiliary Relay (based on the 6R MATRIX series) is a low burden relay for schemes requiring multiple contacts for event recording, alarm initiation or contact logic. It is supplied with heavy duty contacts; magnetic blow-outs can be specified for switching high DC inductive loads. The 6R QUAD four-element flag relay is particularly suited to transformer protection panels for indication and signaling of events such as Buchholz alarms/trips and oil/winding temperature alarms/trips.

6rm-quad-h.pdf
