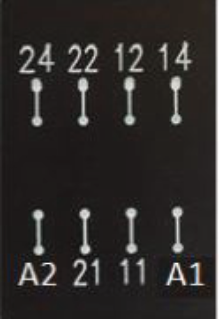

The V17 is a surface / wall and 35 mm rail mount CU-Relay Socket. The V17 socket has two spring terminals per relay contact suitable for two stripped wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed.
Quick connection by pressing the spring terminal with a flat-bladed screwdriver and inserting the stripped wire. Equipped with an integrated retaining clip. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.
